Full Automatic Steel Slitting Machine for Cutting/Steel Cutter Machine
Working flow:
Motor decoiler—transmission---slitting----correcting and damping—Auto hydraulic recoiler
| Components of equipment | |
| Motor decoiler | 1 set |
| Slitting | 1 set |
| Correcting and damping | 1 set |
| Auto hydraulic recoiler | 1 set |
| Electrical control cabinet | 1 set |
Detailed information
| 1.Motor decoiler | |
| Motor | 5.5kw |
| Capacity (Max) | 8 Tons |
| Inner diameter | 450-550mm |
| Coil Width (Max.) | 1250mm |
| 2. Coil transmission | |
| Transport roller | 45# forge steel, quenched and chrome coated 0.05mm |
| Width of roller | 1500mm |
| Motor power | 3KW |
| 3. slitting part | |
| Disc slitting blade | |
| Number of disc blade | 11groups(as customer require) |
| Material of disc blade | Cr12mov |
| Material of main shaft | steel and Rubber covered |
| Slitting speed | 20-30m/min |
| Motor power | 11KW |
| Scrape recoiler | |
| Rotary according to slitting device | |
| 4. correcting and damping | |
| Correcting rollers | three rollers, 45#forge steel and chrome coated 0.05mm |
| 5. Recoil system with correcting device | |
| Expanding | hydraulic |
| Capacity | 5 Tons |
| Hydraulic power | 5.5KW |
| Motor power | 7.5KW |
| Inner diameter | 450-550mm |
| Recoiler width | 50-1250mm(adjustable) |
| Automatic recoil with correcting device | |
| 6.Electrical control cabinet | |
| Electrical system: | PLC Panasonic 380V, 50HZ, 3 phase(also depend on customer demand) |
| Transducer | Quartet Brand |
| Weight | 10.5 tons |
| Production area | 18.5x3.5x2.1meters |

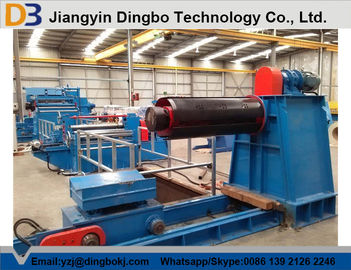

Pictures for Reference
Certificates
Company Scene
1, Pre-sale service : Confirm details with customer, to make the most suitable Offer to them according to their real needs in production
2, Mid-sale service: Track and report production progress to Customers
3, After-sale service: 1 Year free quality garantee, after 1 year we offer lifetime garantee but just charge basic cost for comsumable parts
