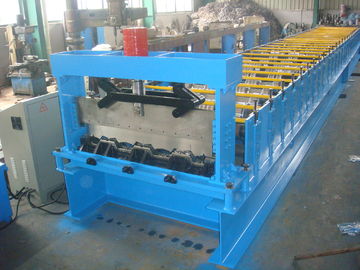

22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling

China 22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling supplier
22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling supplier 22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling supplier 22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling supplier 22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling supplier

Large Image :  22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ISO,CE,SGS
Model Number: According to requirements

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD20,000-USD40,000
Packaging Details: Nude Package and fixed by steel rope,40GP container.
Delivery Time: 35days
Payment Terms: TT/LC
Supply Ability: 6 sets/month
Contact Now
Detailed Product Description



22kw Steel Deck Roll Forming Machine galvanized board For Material Handling







Introduction and Guarantee :



1. This machine contains our experiences in 30 years and many times improvements by our engineers.

2. In our service, we support the equipments and profiles that customers really need and including our most sincere recommends.

3. Our roll forming machines are driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production of steel panel.





Applications:



Construction

Food Services

Lawn & Garden

Shelving

Automotive

Fencing

Lighting

Store Fixture

Display Industry

Furniture

Material Handling

Sporting Goods

Farming

HVAC

Mining

Transportation.etc





Specifications:



Suitable to process

colored steel plate,galvanized board

Width of the plate

1200mm

Rollers

30 groups

Rolling material

Forging steel 45#

Rolling galvanization thickness

0.7-1.5mm

Material of the cutting blade

Cr12mov

Dimensions

Approx20m*1.6m*2m

Power

22kw

Thickness of the plate

0.7-1.5mm

productivity

10m-15m/min

Diameter of the roller

85mm

Weight

About 8T

Voltage

380V 50Hz

Processing precision

Within 1.00mm

Equipment components

Man-made uncoiler,roll forming machine,

Compture control system

Hydraulic control system

Press foming cutting

Transportation

One complete equipment need one 40 feet container to hold







Advantage:



1. We use Automatic control software to manage productive information.

2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.

3. High performance in operation, maintenance, and debugging. Easy to load and unload.

4. First in quality

5. First in time

6. First in price

7. First in services



22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling22kw Steel Galvanized Board Floor Deck Roll Forming Machine For Material Handling
