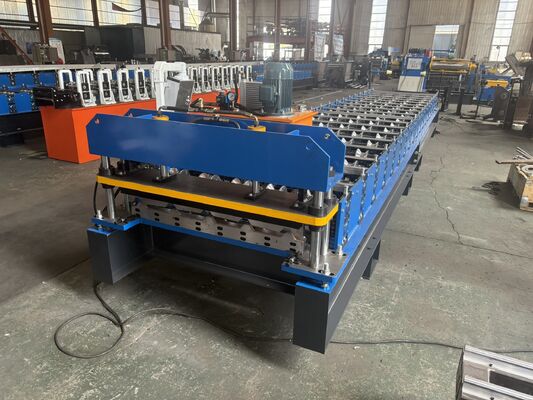

Building Material Automatic Metal Ibr Roof/Roofing Iron Sheet Roll Forming Machine

Products

Floor Deck Roll Forming Machine

Highway Guardrail Forming Machine

Shutter Door Roll Forming Machine

Strut Channel Roll Forming Machine

Cable Tray Roll Forming Machine

Door Frame Roll Forming Machine

Automotive Roll Forming Machine

Customized Roll Forming Machine

Building Material Automatic Metal Ibr Roof/Roofing Iron Sheet Roll Forming Machine

MOQ:	1 set
Price:	USD1,000-700,000. Based on customization.
Standard Packaging:	Industrial plastic film wrapping, secured with steel wire.
Delivery Period:	30 days
Payment Method:	L/C,T/T
Supply Capacity:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

METALIGN

Certification

CE,ISO,etc

Model Number

IBR

Product Name:

Roofing Roll Forming Machine

Key Words:

IBR Panel Machine / Form Rolling Machine

Profile:

Ibr Ribs Panel

Application:

Residential Roof Drainage / Commercial Building Gutters

Material Type:

PPGI/PPGL/GI/GL Steel Coils

Material Thickness:

0.3-0.8mm

Forming Speed:

15-20m/min

Main Motor Power:

15Kw

Forming Stations:

Driving System:

Chain

Frame Structure:

Wall Panel

Shaft Diameter:

70mm

Shaft Material:

#45 Steel Quenched 55-60℃

Roller Material:

High Grade #45 Steel , Surface With Hard Chrome

Display Language:

English/Spanish/Russian/French,etc, Customizable

Control Technique:

PLC+Touch Screen

Highlight:

automatic metal IBR roofing machine

iron sheet roll forming machine

building material roof forming machine

Product Description

Building Material Automatic Metal Ibr RoofRoofing Iron Sheet Roll Forming Machine

This cold roll forming line is designed for the continuous production of trapezoidal IBR roof sheets widely used in industrial buildings, warehouses, and residential roofing systems. It works with galvanized or pre-painted steel coils with thicknesses typically ranging from 0.3 to 0.8 mm, forming pronounced rib patterns that provide dependable structural rigidity, smooth water drainage, and a clean, consistent surface finish.

The machine is built on a heavy-duty welded frame and equipped with precision-machined forming rollers to ensure stable forming performance and accurate profile dimensions during long-term operation. A PLC control system with a touchscreen interface allows operators to conveniently set panel length, production quantity, and running speed. The hydraulic cutting device performs accurate, burr-free cutting while the line runs steadily at a production speed of about 10–15 meters per minute.

Technical Specifications

Decoiler

Parameter	Specification	Visual Reference
Structure	Double-support
Working Form	Manual, motorized, or hydraulic
Loading Capacity	5T/7T/10T, customizable
Coil Width	1250mm, customizable
Inner Diameter	Φ450 - Φ550 mm
Out Diameter	1500 mm
Model	DC-MU1

Optional Decoiler Upgrades

Guiding Device With Pre-Cut Broaching Shear

Component	Function	Visual Reference
Guiding Roller	Adjust the coil feeding width
Pre-cut Broaching Shear	Cut the steel coil before roll forming
Digital Display	See the feeding width directly

Roll Forming Machine

Parameter	Specification	Visual Reference
Working Speed	Around 20 m/min
Structure	Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System	Chain system. Optional: Gearbox
No. of Forming Stations	18 stands
Shaft Diameter	70mm solid shaft
Motor Power	5.5 Kw
Roller Material	45# steel polished and chromed HRC58-62°
Shaft Material	High grade 45# steel polished (CNC lathe)
Steel Coil Material	PPGI or GI
Steel Coil Thickness	0.25-0.8mm

Optional Cover Upgrades

Cutter

Parameter	Specification	Visual Reference
Common Power Type	Hydraulic. Optional: motor type.
Hydraulic Power	4-5.5Kw, customizable
Blade Material	Cr12 Mov
Hardness	With quenched treatment HRC 58 - 62°

Product Collection

Solution	Specification	Visual Reference
Solution 1: Run-out table	Power Type: Non-powered, mainly manual handling Dimension: Length 4m, customizable
Solution 2: Auto stacker	Power Type: Motorized, 3Kw Dimension: Length 4m-6m, customizable

PLC Control Cabinet

Parameter	Specification	Visual Reference
PLC Brand	Delta, customizable
Power Supply	380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand	Omron, customizable
Language	Chinese + English, Spanish, French, Russian, etc
Touch Screen	MCGS, customizable
Operation type	Manual /auto two-type switch
Hanging Arm Type	Saving Space
Standing Type	Greater component integration and flexible positioning

Hydraulic Power Unit (HPU)

Parameter	Specification	Visual Reference
Motor Power	5.5Kw
Oil Required	N32 or N46 hydraulic oil is available
Design	The hydraulic station has a fan cooling system
Optional	It can be installed on or inside the roll former to save space

System Analysis

Decoiler: Unwinds metal coil, supports large rolls, ensures smooth feed
Guide: Aligns material for precise forming, reduces waste
Roll forming machine: Chain-driven, wall panel structure, forms multi-arc K-style gutters
Hydraulic cutter: Accurate length cutting, stable hydraulic system, reduces manual work
Out table: Collects finished gutters, supports stacking, minimizes damage

Production Line Components

Component	Quantity
Hydraulic Decoiler	1 set
Roll Former	1 set
Hydraulic Cutter	1 set
Out Table	2 sets
PLC Cabinet	1 set
Hydraulic Station	1 set

Customization Options

This roll forming line can be tailored to meet different production requirements. The number and configuration of forming stations can be adjusted to achieve various rib depths, while the hydraulic cutting system can be adapted for different sheet lengths and material thickness ranges.

Additional options include PLC-based speed control, strengthened chain transmission, and the ability to process materials such as aluminum or galvanized steel. These flexible configurations allow the machine to produce roof panels that match specific profile designs and project requirements.
