Window Door Frame Roll Forming Machine Customized Punching Cutting Solution

MOQ: 1 set
Price: Based on customization.
Standard Packaging: Industrial plastic film wrapping, secured with steel wire.
Delivery Period: 30 days
Payment Method: L/C,T/T
Supply Capacity: 30 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
METALIGN
Certification
CE,ISO,etc
Model Number
WF
Product Name:
Compact High-Precision Roll Forming Line For Window Frame Production
Key Words:
Door Frame Roll Former/galvanized Steel/angled Saw/symmetrical Frame
Profile:
Window Frame
Application:
Metal Door Frames / Window Frames / Security Door Edges / Fire-rated Door Surrounds
Material Type:
Galvanized Steel
Material Thickness:
1.5-2mm
Production Speed:
10m/min
Main Motor Power:
5.5Kw
Forming Stations:
14
Driving System:
Chain
Frame Structure:
Guiding Post
Shaft Diameter:
70mm
Machine Condition:
Brand New
Shaft Material:
#45 Steel Quenched 55-60℃
Roller Material:
High Grade #45 Steel , Surface With Hard Chrome
Display Language:
English/Spanish/Russian/French,etc, Customizable
Control Technique:
PLC+Touch Screen
Delivery Time:
30 Days
Highlight:

Window Frame Roll Forming Machine

,

Customized Frame Roll Forming Machine

,

Frame Roll Forming Machine 10m/min

Product Description

Window Frame Roll Forming Machine With Customized Punching Forming Cutting Solution

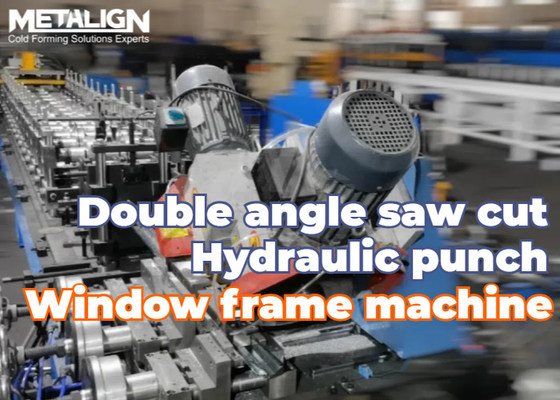

These introductions refer only to the production line and configuration shown in the main image. Each machine is custom-built. Metalign welcomes your inquiry and provides the right production line—forming metal into profiles aligned to your needs.


1. Production Line Overview

  • This roll forming line is tailored for manufacturers of standardized metal door frames seeking high precision and clean angled cuts. It suits mid-volume producers in the construction and modular housing industry, emphasizing cost-efficiency, compact layout, and precision punching for symmetrical profiles. A smart choice for space- and budget-conscious operations.



2. Profile Description

  • This profile is formed from 1.5–2.0mm galvanized steel, designed with symmetrical, clean angles suitable for metal door and window framing. It offers good rigidity, corrosion resistance, and clean cut ends for tight joining. Widely used in commercial doors, prefabricated buildings, and fire-rated access systems.



3. Production Process

  • 3T Hydraulic Decoiler With Leveler → Limiter →Guiding → Hydraulic Punching → Secondary Guiding System → Roll Forming Machine → Straightener → Dual-Angle Saw Cutting System
  • The line starts with a compact hydraulic decoiler and leveler, followed by accurate hydraulic punching. A second guiding section ensures alignment after deformation. The 14-roller forming section uses a guide-column frame for easy adjustment. Final angled saw cutting ensures clean, precise ends ideal for direct door frame assembly without secondary processing.



4. Technical Parameters

Decoiler&LevelerDesign2 in 1
Power typeHydraulic
Weight capacity3Ton
Guiding unitTypeGuiding rollers with handle wheels.
Design6 guiding rollers for 2 rows,2 rollers are shared.
Punching unitTypeHydraulic
 Stations2 punching stations
Roll formerSpeed10m/min
Main power5.5Kw
No. of stations14
Driving systemChain
Frame structureGuiding post
Shaft diameter70mm
Shaft material#45 steel quenched 58-62℃
Roller materialHigh grade #45 steel , surface with hard chrome
Equipment colorNormally blue, customizable
Safety coverMesh/Enclosed, optional.
Cutting unitTypeAngled saw cut
ContinuityThe roll former stops when cutting.
Cutting blade materialCr12Mov, quenching 58-62℃
Tolerance±1mm
Control techniqueTypeFloor-standing electric control box
PLCSiemens
InverterYaskawa
Frequency changerYaskawa
EncoderYaskawa/OMRON
Touch screenMCGS
Electrical partsShneider
Display languageEnglish/Spanish/Russian/French,etc, customizable
Out tableTypeWith no power rollers, manual.



5. Key Focus

  • Customization: Tailored specifically for window frame production — guiding, punching, forming, and cutting units are all optimized for frame geometry.
    Stability: Dual guiding, hydraulic punching, integrated straightening, and dual-angle cutting ensure high precision and consistent product quality.



6. Production Line Components

ComponentQuantity
Decoiler with leveler1 set
Limiter1 set
Guiding unit2 sets
Hydraulic punch1 set
Main machine-Roll former1 set
Saw cutter1 set
Hydraulic station2 sets
PLC control cabinet1 set
Manual out table2 sets
Container size for reference:1*40GP



7. Customization Options

  • This line supports customization for door frame width, height, corner angle, and punching patterns. Specific punching dies can be tailored for locksets, hinges, or mounting holes. The dual-angle saw system can be adjusted for varying bevel cuts, meeting regional installation standards. Profile depth and side folds can be reconfigured upon request.
