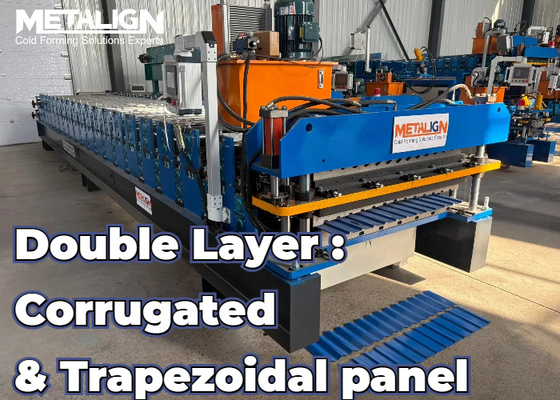

2 In 1 Double Layer Roofing Roll Forming Machine

Products

Floor Deck Roll Forming Machine

Highway Guardrail Forming Machine

Shutter Door Roll Forming Machine

Strut Channel Roll Forming Machine

Cable Tray Roll Forming Machine

Door Frame Roll Forming Machine

Automotive Roll Forming Machine

Other Profiles Roll Forming Machine

2 In 1 Double Layer Roofing Roll Forming Machine

MOQ:	1 set
Price:	Based on customization.
Standard Packaging:	Industrial plastic film wrapping, secured with steel wire.
Delivery Period:	30 days
Payment Method:	L/C,T/T
Supply Capacity:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

METALIGN

Certification

CE,ISO,etc

Model Number

DLR

Profile:

Corrugated And Trapezoidal Roofing Panels

Machine Type:

Double Layer

Material Thickness:

0.3-0.8mm

Production Speed:

10-20m/min

Driving System:

Chain

Frame Structure:

Wall Panel Structure

Shaft Diameter:

70mm

Machine Condition:

Brand New

Delivery Time:

30 Days

Highlight:

double layer roofing roll forming machine

double layer metal roofing machine

2 in 1 metal roofing machine

Product Description

1. Production Line Overview

This double-layer roll forming machine is designed for roofing manufacturers and construction material suppliers who need cost-effective and flexible production of corrugated and trapezoidal roofing panels. With a dual-layer design, it maximizes space efficiency, reduces costs, and allows quick switching between different panel profiles without requiring two separate machines.

2. Profile Description

The roofing panels are made from 0.3-0.8mm thick pre-painted steel or galvanized steel sheets, commonly used in industrial, commercial, and residential roofing applications. These panels are typically produced using roll forming machines with precise forming rollers to ensure consistent panel shape and strength, offering superior weather resistance and durability.

Profile shape	Corrugated and trapezoidal roofing panels
Material type	Pre-painted steel, galvanized steel
Material thickness	0.3-0.8mm

3. Production Process

Decoiler-Guiding & Feeding-Roll former-Hydraulic cutting-Out table

The machine starts with a 5T manual decoiler feeding metal coils into a guiding system for accurate positioning. The coils then pass through the roll forming section, shaping them into corrugated or trapezoidal profiles. A hydraulic cutting system ensures precise cuts to length before the finished panels exit onto the out table.

4. Technical Parameters

Decoiler	Power type	Manual
	Weight capacity	5 Ton
	Function	The 5T manual decoiler unwinds the steel coils, feeding them into the production line. It provides controlled feeding of the material to ensure a consistent flow through the machine.
	Benefits	Handles larger coils up to 5 tons, reducing downtime for coil changes. It’s easy to operate, space-efficient, and cost-effective for small to medium-sized operations.
Guiding unit	Type	Guiding bars
	Function	The guiding unit ensures that the steel sheet is properly aligned before it enters the forming section. It prevents the material from misaligning during the forming process.
	Benefits	Ensures the material stays straight, preventing defects. Helps maintain the consistent quality of the roofing panels and reduces wastage caused by misalignment.
Roll former	Speed	10-20m/min
	Main power	5.5 Kw
	No. of stations	Up layer 19, lower layer 21
	Driving system	Chain
	Frame structure	Wall panel
	Shaft diameter	70mm
	Shaft material	#45 steel quenched 58-62℃
	Roller material	High grade #45 steel , surface with hard chrome
	Benefits	Increases production capacity by producing two profiles without requiring additional machines. Reduces costs and floor space, making it ideal for high-output needs.
	Type	The dual-layer design allows for two different profiles to be formed simultaneously, maximizing space and operational efficiency.
	Equipment color	Normally blue, customizable
	Safety cover	Mesh/Enclosed, optional.
Cutting unit	Power type	Hydraulic
	Continuity	The roll former stops when cutting.
	Cutting blade material	Cr12Mov, quenching 58-62℃
	Tolerance	±1mm
Control technique	Type	Floor-standing electric control box
	PLC	Siemens
	Inverter	Yaskawa
	Frequency changer	Yaskawa
	Encoder	Yaskawa/OMRON
	Touch screen	MCGS
	Electrical parts	Shneider
	Display language	English/Spanish/Russian/French,etc, customizable
Out table	Type	With no power rollers, manual.
	Function	The out table provides a stable surface to collect and organize the formed panels after cutting.
	Benefits	Efficiently handles larger roofing panels without requiring additional power. It improves organization and ensures safe handling of panels, reducing the need for manual labor.



Option: Dual-Arm Stacker	Function	The dual-arm stacker helps stack and organize larger roofing panels once they are formed and cut.
Option: Dual-Arm Stacker	Benefits	Ideal for handling wide and heavy panels, making it easier to move and stack panels. This reduces manual effort and enhances safety while improving efficiency.
Option: Hydraulic Decoiler	Function	Automatically expands and rotates, ensuring stable and controlled uncoiling for high-efficiency production.
Option: Loading Car for Decoiler	Function	Assists in lifting and positioning coils, reducing manual labor and improving operational safety.

5. Production Line Components

Component	Quantity
Decoiler	1 set
Guiding unit	1 set
Dual-Layer Roll Forming Machine	1 set
Hydraulic cutter	2 sets
Hydraulic station	1 set
PLC control cabinet	1 set
Manual out table	2 sets
Container size for reference:140GP+120GP

6. Key Advantages

Dual-layer design – Produces two panel profiles on a single machine, saving cost and space.
Fast profile switching – No need for complete machine changeover, increasing efficiency.
Customizable panel design – Adjustable roller sets for different roofing panel specifications.
Precision forming rollers – Ensures high-quality, consistent panel shapes and dimensions.
Durable hydraulic cutting – Provides clean, burr-free cuts for a professional finish.
User-friendly operation – Touchscreen control with multiple language options for global use.
Robust machine structure – Heavy-duty frame for long-lasting performance and stability.
Compatible with various coatings – Works with galvanized, PPGI, and aluminum sheets.

7. Customization Options

We offer customized steel silo roll forming machines to meet your specific profile requirements.

Profile Size & Thickness – Tailored to your design, available for various steel thicknesses.
Production Plan & Components – Branded electrical parts and durable machine components.
Machine Color & Control System – Custom colors, multilingual HMI, and adaptable voltage options.
Customization Service – We can manufacture based on your provided technical drawings.
Contact us to discuss your specific project needs!
