|Material:||PPGI||Raw Material:||Steel Coil|
|Roller Material:||45# Steel||Power(W):||5.5+4KW|
|Voltage:||380V 50Hz||Control System:||PLC ( Panasonic)|
floor deck roll forming machine,
roofing sheet forming machine

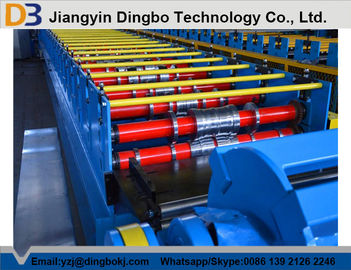

Colored Steel Trapezoidal Decking Tile Making Machine With Hydraulic Post Cutting
Product Features And Descriptions
Products of Metal deck roll forming machine as the tensile reinforcement of concrete floor slab in the use stage, the rigidity of the floor slab is also improved, and the amount of reinforcement and concrete is saved.
Decoiler--Guiding&leveling--roll forming-- cutting to length--Run out
|1||Specification of roll||1250mm|
|4||Main motor power||11 KW*2|
|5||Dimension of product||16500mm*1500mm*1100mm|
|6||Material of rolling round||Steel 45#|
|7||Material and Diameter of bearing||Steel 45#, 70mm|
|8||Weight of product||About 13 T|
|10||Model of bearing||45|
|11||Mode of cutting||Hydraulic cutting|
|12||Material of scissors||Cr12|
|13||Hydraulic station power||4 KW|
|14||Computer cabinet size||700mm*1000mm*300m|
|15||PLC, Dynamic currency device||Japan Panasonic|
|1||Uncoiler deck||1 set|
|2||Forming machine||1 set|
|3||Cutting device||1 set|
|4||Hydraulic station||1 set|
|5||PLC control cabinet||1 set|
|6||Run out table||1 set|
1. operations safety
2. nice appearance, high quality
3. reasonable price
4. CE certification
5. High strength
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
