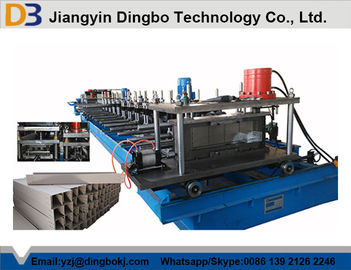

Siemens PLC Contorl Cable Ladder Manufacturing Machine with Punching Automatically

China Siemens PLC Contorl Cable Ladder Manufacturing Machine with Punching Automatically supplier
Siemens PLC Contorl Cable Ladder Manufacturing Machine with Punching Automatically supplier Siemens PLC Contorl Cable Ladder Manufacturing Machine with Punching Automatically supplier

Large Image :  Siemens PLC Contorl Cable Ladder Manufacturing Machine with Punching Automatically

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: ISO CE SGS
Model Number: DBCT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD30,000-100,000
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T
Supply Ability: 20 sets /month
Contact Now
Detailed Product Description
Raw Material: Color Steel Roller Material: 45# Steel
Production Capacity: 10-15m/min Power(W): 78 KW
Voltage: 380V 50Hz Control System: PLC ( Panasonic)
Cutting Blade Material: Cr 12 High Grade Steel Product Name: Mitsubishi / Siemens PLC Contorl Cable Ladder Manufacturing Machine With Punching Automatically







What is the application of cable tray machine?

Galvanized steel cable tray machine is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe. For Dingbo cable tray roll forming machine is a kind of machine for making cable tray by roll forming principle.

Siemens PLC Contorl Cable Ladder Manufacturing Machine with Punching Automatically



What is the working flow of cable tray machine?

full automatic changable cable tray roll forming machine



What is the specifications of cable tray machine?

Cable tray machine is composed by the following elements:

de-coiler

Parameter: width of material: 225-1020mm thickness: 1-2mm;
Inner diameter of coil: 508mm;inner expansion range: 480-520 mm;
The maximal of Diameter: 1500mm; The Maximal of loading: ≤5T
Motor power: 5.5kw frequency change control
Press material type: pneumatic press material
Feeding speed: 0-15m/min, adjustable



Leveling machine of fully automatic cable tray machine

A: working roller: nine rollers type leveling machine
B: Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal.



Servo feeding machine

A: function: material feeding

b. Feature: Uses the servo motor-driven .Multistage type feeding: May input 10 group of different feeding lengths. The liquid crystal touching screen demonstrated is advantageous for the change, establishes various technical parameters. The auto-induction start system and the punch press linkage (control punch press start).



Punching press of

Model of punching press: JF21-125



Roll forming part

Forming station: 14sets

Forming variety: bridge frame

The diameter of the roller axis: 85mm



Hydraulic cutting

Cutting type: hydraulic cutting
Blade type: close type die cavity cutter
Hydraulic power:5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 9 (depend on customer request)



Run-out table

Structure: roller type with no power
Electric control system
A: Full line is controlled by PLC control system,touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc..
B: Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency was stopped ensure the safe of the equipment and operator.
