50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE

50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE
50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE

Large Image :  50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: ISO SGS CE
Model Number: MZ2017041003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 12500-16500/min
Packaging Details: nude package in 20 GP container
Delivery Time: 35 working days after receiving 30% deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets/month
Detailed Product Description
Dimension(L*W*H):: 5m*1.3m*1.3m Name: Seamless Gutter Machine
Shaft:: 45#steel, Diameter Of 67mm Voltage: 3.0kw,380v,50hz
Container:: 20GP Forming Speed Approx:: 8-12m/min
Main Motor:: 3KW Raw Material: Colored Steel
Width: Optional Max Forming Speed: 60 Meters/min
High Light:

cold roll forming machine

,

gutter making machine

50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE

Description of seamless gutter machine

Seamless gutter machine is composed of the decoiler, feed-leading table, main machine, the post cutting device, hydraulic system, PLC controler and the supporting table.

The products which produced buy gutter roll forming machine has the special feature of longer working time than the tranditional ppc pipe, and not aging. It can make your project more integrate, and help to enhance the positive images of the all your project.



Working flow of seamless gutter machine

50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 0

Technical data of seamless gutter machine

No. name Descriptions
1 Weight of main part About 6.5T
2 Voltage 380v/3phase/50hz(as cutstomer request)
3 Roller fixer Middle plate welded
4 Frame 350 H steel welded
5 Frame thickness 20mm
6 Drive mode Chain
7 material of rollers 45# steel,surface hard chromium plating
8 material of shafts 45# steel
9 Diameter of rollers 80mm
10 Number of rollers 15rollers
11 Main power 5.5kw

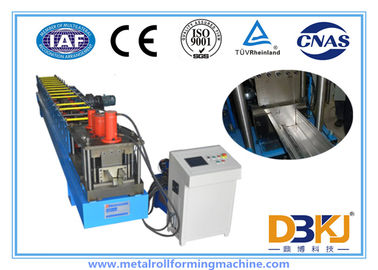

Pictures of seamless gutter machine

50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 1

50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 2

Exhibitions

50Hz 3 phase Colored Steel Seamless Gutter Machine ISO SGS CE 3



After sale services

  • Engineer will give free training lessons to labors in buyer’s factory.
  • The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD50 for engineer.
  • During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
  • We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
