Product Details:
Payment & Shipping Terms:
|
Condition: | New | Type: | Gutter Roll Forming Machine |
---|---|---|---|
Use: | Gutter | Color: | As Your Requires |
Raw Material: | PPGI | Warranty: | 1 Year |
Control System: | PLC | Power(W): | 5.5KW |
Roller Material: | 45# Forged Steel | Voltage: | 380V 50Hz 3phases |
High Light: | cold roll forming machine,rain gutter machine |
Brief introduction of gutter roll forming machine
The rain gutter roll forming machine can be designed according to the drawings and requirements provided by our client. It is used to fabricate rain gutters that could work together with down pipes to form the drainage system for the building.
Technical data of gutter roll forming machine
1). Main Principal Axis Diameter: ¢76mm
2). Forming Roller stand: 15 Groups
3). Main Axis material: First grade 45# steel, heated and quenched
4). Roller material: High grade 45# Steel, Quenched and heated process, surface with 0.05mm hard chrome.
5). Forming Speed: 0-15 m/min
6). Dive Type: Chain of transmission
7). Chain Material: 45# steel.
8). Machine Frame stand: Welded structural steel
9). Machine Base: 36# H shape steel
10). Thickness of Fame Steel: S18mm
11). Main Power: 5.5KW Cutting Device & Hydraulic Station
12). Cutting type: Hydraulic cutting
13). Hydraulic power: about 4Kw
14). Hydraulic Blade and cutter material: C r12 Mov, quenching process
15). Cutting length tolerance: +/- 2mm
Quality and Service Assurance gutter roll forming machine
1.we have Q & C department in our factory and our engineer have much experience and can design the suitable machine for our clients.
2.our machine can produce the nice production, can guarantee good quality.the production is confirm to the national standard even the international standard
3.the products should not have scratch and the flatness
Technical R & D Department: design teams for different kind of production line.

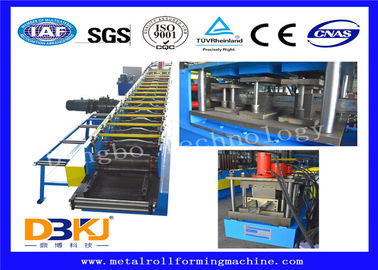

Photos gutter roll forming machine
