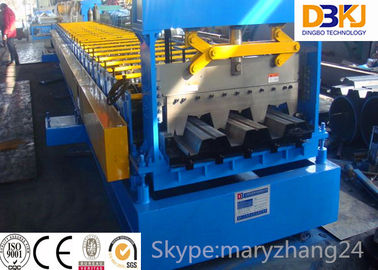

Metal Profile Deck Roll Forming Machine with Panasonic PLC Control

Metal Profile Deck Roll Forming Machine with Panasonic PLC Control
Metal Profile Deck Roll Forming Machine with Panasonic PLC Control Metal Profile Deck Roll Forming Machine with Panasonic PLC Control Metal Profile Deck Roll Forming Machine with Panasonic PLC Control Metal Profile Deck Roll Forming Machine with Panasonic PLC Control Metal Profile Deck Roll Forming Machine with Panasonic PLC Control Metal Profile Deck Roll Forming Machine with Panasonic PLC Control Metal Profile Deck Roll Forming Machine with Panasonic PLC Control

Large Image :  Metal Profile Deck Roll Forming Machine with Panasonic PLC Control

Product Details:
Place of Origin: Jiangsu, China
Brand Name: DB
Certification: ISO, CE, SGS
Model Number: MZ2016080501
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 30000-35000 USD
Packaging Details: nude package in 40 GP container
Delivery Time: 35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets / month
Detailed Product Description
Control: Panasonic PLC Material: GI
Color: Optional Speed: 12 Meters/ Min
High Light:

floor deck roll forming machine

,

sheet metal forming machine

Floor Decking Metal Profile Making Equipment Floor Deck Roll Forming Machine



Working folw:



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 0

Metal Floor Deck Sheet Roll Forming Machine Main Roll Forming System:

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.


Length of the main part: About 6500*1500*1400
Weight of main part: 3-5 tons
Voltage : 380V/480V/50HZ/60HZ/3-Phase
Drive mode: Chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80-90mm
Number of rollers : 13-26 rollers
Main power:3.5-7.5kw



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 1



Metal Floor Deck Sheet Roll Forming Machine Shearing Mechanism:

Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : Hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 2



Metal Floor Deck Sheet Roll Forming Machine Hydraulic Station:

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power:3.5-5.5kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 3



Metal Floor Deck Sheet Roll Forming Machine Electric Control System:

1.Adopted PLC , frequency converter , touch screen to ensure high speed with stability, precision and lifetime.
2.The brand of the electric elements are Panasonic.



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 4



Certificates



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 5



Exihibition



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 6



Customers visits



Metal Profile Deck Roll Forming Machine with Panasonic PLC Control 7



Services







Metal Floor Deck Sheet Roll Forming Machine Our Service:

a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
