Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	US $15,000 - 20,000 / Set
Packaging Details:	nude pacakge in a 40 GP container
Delivery Time:	35 Days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	20 Set/Sets per Month

Contact Now

Detailed Product Description

After Sales Service Provided:

Service Machinery Overseas

High Light:

z purlin roll forming machine

Engineers Serve Overseas C Purlin Roll Forming Machine with High Speed

The profile drawing

The thickness of Material: 2.0-3.0mm

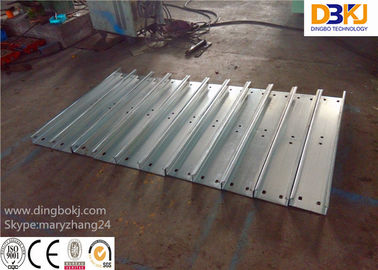

Touching Screen C Purlin Roll Forming Machine With 76mm Material 0

Working flow

Main Specification

Main roll forming system
Main motor power	15kw
Main shaft dia	76mm material: 45forge steel and quenched
Roller material	Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
Roll station	12 groups
Raw material	Galvanized steel 2.0-3.0mm thick
Width of purlin	100-300mm adjustable
Working speed	10m--15m/min(Exclude cutting time)
Weight of machine	about 6ton
Size of machine	About 9500×1000×1500mm L x W x H
Color of machine	up to you
Coder	Omron
Omron	PLC Panasonic, made in Japan. 380V 50HZ, 3 phases
Computer operating panel	touching screen
Punching	Hydraulic punching before roll forming
Cutting	Hydraulic cutting after roll forming, cutting when reach the set length.
Hydraulic power	5.5KW
Blade material	Cr12,quenched 58°-62°
Working pressure	20mpa
Cutting tolerance	+/- 1.5mm
Random	3 pieces of cutters
