Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System

Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System
Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System

Large Image :  Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System

Product Details:
Place of Origin: China
Brand Name: DB
Certification: CE
Model Number: According to profile
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Plastic Film package
Delivery Time: 45days
Payment Terms: TT
Supply Ability: 2sets/month
Detailed Product Description
The Coil Width: ≤1250 Mm Hydraulic Unit Power:: 3 KW
Size:: 2700mm*1750mm*1700mm
High Light:

roll former machine

,

roof tile roll forming machine

Hydraulic Uncoiler Machine with PLC Vector Inverter Control System with Hydraulic Station

Hydraulic Uncoiler Machine with PLC Vector Inverter Control System

Hydraulic uncoiler is the specific machine for uncoil. There are three or four rake fanning strip,

connected by dovetail groove, installed on the mandrel.


In the end of the the fanning strip installed a radial slide incase it moves to the shaft.

But it can open and shrink along the radial direction. The tail of the drum shaft connects to the

rotatable cylinder. The cylinder piston rod drives the forward tetragonal shaft move along

the shaft by the draw bar in the middle on it. The fanning strip would be lead to

open or shrink and add the diameter of the coiling block.


This machine can make stretch coil-deliver coil automatically, the speed of which is same

with the forming machine. It is a matching machine for colored steel equipment. In order to

save human recourse and lower labor cost, it is better to work with colored steel mould

machine and stacker, with which it formed a completely porducing line.


This machine is compose of feed main machine, hydraulic station, CNC control system.

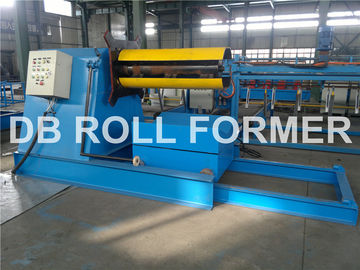

Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System 0



Technological Process:


Uncoiling---Feeding---Leveling---Punching---Rool Forming---Cutting---Products Collecting


Main technical specifications of hydraulic decoiler:


1. Install size: 2700mm*1750mm*1700mm
2. The coil width: ≤1250 mm
3. Coil inside diameter: 480-510 mm
4. Productivity: 0-35 m/min
5. Main motor power: 3 KW
6. Hydraulic unit power: 3 KW
7. Electric control system: PLC vector inverter
8. Tolerate weight: max 5 tons

Automatic Hydraulic Uncoiler Equipment 5 Tons With PLC Vector Inverter Control System 1
