Product Details:
Payment & Shipping Terms:
|
| High Light: | z purlin roll forming machine,roll former machine |
||
|---|---|---|---|

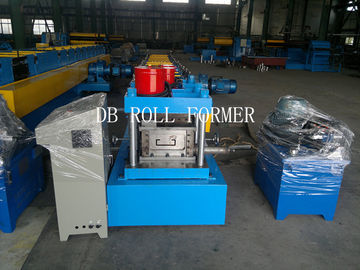

C Purlin Roll Forming Machine With Gcr15 Bearing Steel 12 Groups Rollers for Store Fixture
Introduction:
We manufacture Roll Forming machine,European roller shutter machine,C & Z purlin machine,Roof & wall forming machine,
Octagon tube machine,Guardrail forming machine,Tile roof forming machine,Door frame forming machine,Down pipe forming
machine,Slitting line,Sandwich panel line,Floor decking forming machine,Cable tray forming machine,uncoiler and recoiler,
Double-layer forming machine,Ridge cap forming machine,Cut to length line,Shearing and press brake machine,T-bar forming
machine,roller shutter slat forming machien,etc.
Applications:
|
Construction |
Food Services |
Lawn & Garden |
Shelving |
|
Automotive |
Fencing |
Lighting |
Store Fixture |
|
Display Industry |
Furniture |
Material Handling |
Sporting Goods |
|
Farming |
HVAC |
Mining |
Transportation.etc |
Specifications:
|
Suitable to process |
colored steel plate,galvanized board |
|
Width of the plate |
80-200mm (valid) |
|
Rollers |
12groups |
|
Rolling material |
Gcr15 bearing steel, quenched 58-62° |
|
Rolling galvanization thickness |
2.0-3.0mm |
|
Material of the cutting blade |
Cr12mov |
|
Dimensions |
Approx10m*1.2m*1.5m |
|
Power |
7.5kw |
|
Thickness of the plate |
2.0-3.0mm |
|
productivity |
3-6m/min |
|
Diameter of the roller |
80mm |
|
Weight |
About 8T |
|
Voltage |
380V 50Hz |
|
Processing precision |
Within 1.00mm |
|
Equipment components |
Man-made uncoiler,roll forming machine, Compture control system Hydraulic control system Press foming cutting |
|
Transportation |
One complete equipment need one 40 feet container to hold |
Advantage:
1. We use Automatic control software to manage productive information.
2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. First in quality
5. First in time
6. First in price
7. First in services
