2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy

2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy
2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy 2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy 2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy 2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy 2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy

Large Image :  2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy

Product Details:
Place of Origin: Jiangsu, China
Brand Name: DINGBO
Certification: CE ISO SGS
Model Number: DBSG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 40000~55000 USD/set
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets /month
Detailed Product Description
Use: Highway Guardrail Control System: PLC With Touch Screen
Roller Material: Gcr15 Steel With Quenching After-sales Service Provided: Engineers Available To Service Machinery Overseas
Key Selling Points: High-accuracy Profiles: Customer's Demand
High Light:

highway guardrail roll forming machine

,

steel roll former

  Galvanized Highway Guardrail Roll Forming Making Machine
Product Descriptions
The metal highway guardrail roll forming machine composed with 5 tons manual decoile, feeding guide device, straighten and leveling device, front hydraulic punching device, roll forming machine, hydraulic cutting and auto stacker or manual stacker for finished products.
Working Flow
Decoiler -- Leveing -- Punching -- Roll-forming -- cutting -- Output table
Door Frame Forming Machine Price
Product Parameters

Items Specifications
Max Material Thickness 2-4.0mm
Hydraulic Uncoiler 5T
Leveler 7Rollers
Hydraulic Power 15 kw
Punching Hydraulic pre-punching
Mould Material Cr12Mov
Rolling Speed 10m/min
Roller Stations 18 stations
Roller Material Gcr15, quench treatment hardness 55-60
Shaft 45#steel
Shaft diameter 95mm
Main Motor Power 55 kw
Side structure Memory archway
Transmission Gearbox
Hydraulic Power 15 kw
Blade Material Cr12Mov
Tolerance +-1.5mm
Electric Source

380V, 50HZ,3 phase(customized)

PLC Control System Panasonic


Main models

No. Name Qty
1 Hydraulic uncoiler 1
2 Leveling 1
3 Hydraulic Punching 1
4 Main Roll Forming Machine 1
5 PLC Control Box 1
6 Hydraulic Pump Station 1
7 Output Table 2

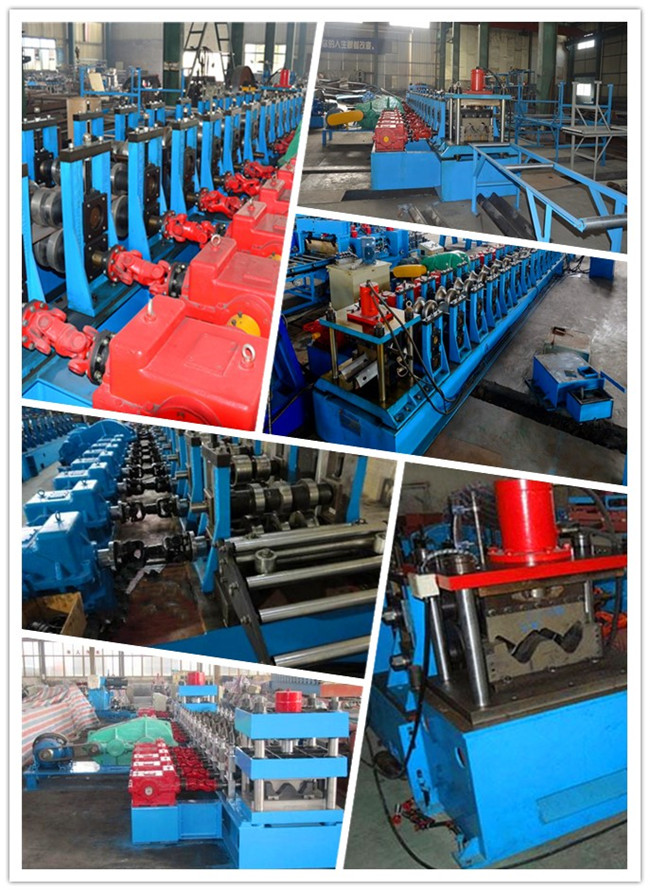

machine pic
2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy 1
Application​ pic
The highway guardrail is the main form of the semi-steel guardrail. It is a continuous structure in which corrugated steel guardrails are spliced to each other and supported by the main column. The effect of the vehicle on absorbing energy during its collision is not easy to be destroyed, and it can also protect the vehicle and the passengers.
The bending of the highway guardrail increases the appearance and increases the strength of the slab. Both are available. The automatic production line is extruded, the surface is clean and undamaged, and the corrosion resistance is extremely strong. The surface treatment is mature; anti-corrosion, anti-aging and anti-corrosion The characteristics of drying, high and low temperature, the service life in outdoor environment can reach 10-25 years; The product structure is concise, beautiful and practical, easy to transport, install, good anti-theft performance, limited by actual terrain, for mountain, slope, multi-bend The zone has strong adaptability and moderate cost, which is suitable for large-scale adoption.
2&3 Waves Beam Barrier Galvanized Highway Guardrail Machine With High - Accuracy 2
Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.
Making:
The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.
Assembling:
The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.
Testing:
Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.
Delivery:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
Main features
1. We can make and design all kinds of roll forming machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
