| Raw Material: | Galvanized Sheet | Roller Driven Type: | Chain Transmission |
|---|---|---|---|
| Control System: | PLC | Roller Material: | High-grade 45# Steel |
| Shaft Material: | High Grade No.45 Forged | Voltage: | 380V 50Hz 3phases |
| Product Name: | China Manufacturer Roll Forming Machine For Galvanized Steel CZ Purlin | Color: | Customers Requirement |
| High Light: | z purlin roll forming machine,c purlin roll forming machine |
||
Panasonic PLC Purlin Roll Forming Machine , Metal Rolling Equipment Blue Color
Main feature
C section steel features: c-shaped steel is processed by cold bending of hot rolled plate, with light weight, excellent section performance and high strength.
Z section steel features: in addition to high strength, steel and other excellent properties, it is convenient, quick and material for q195-345.
Technological process
Uncoiling—Servo feeding—Punching—Roll forming—Cutting—Products collecting
Technical parameters
1. The specification of the rolling production (mm): 80-300,L (see appendix 1)
2. The speed of the roll-in: 12-15M/min
3. The number of the roller: 17
4. The material of the roller: use the excellent hammered steel Cr15 to be quenched as a whole, then to process by numerical control.
5. The material of the principal axis: use the excellent steel No.45 to process.
6. The power of the principal electric motor: 22kw
7. Hydrodynamic station cut: 7.5kW
8. The size of the shape equipment: 10.3,2.3,1.2 (see the appendix 2)
9. The gross weight of the equipment: 15T
10.Accessories: one set of the stacking shelf, one set of leveling mechanism, one set of punching and cutting
mechanism, one set of hydrodynamic station, one set of computer control system (Panasonic programmable
PLC, touchable display screen, a series of Panasonic transducers, and OMRON encoder) a set of material shelf.
Main components
| No. | Name | Qty |
| 1 | Manual uncoiler | 1 |
| 2 | Hydraulic punching | 1 |
| 3 | Main roll forming machine | 1 |
| 4 | Hydraulic Cutting | 1 |
| 5 | PLC Control box | 1 |
| 6 | Hydraulic Pump Station | 1 |
| 7 | Output table | 2 |

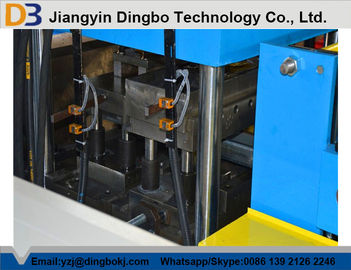

Machine picture
