Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic

Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic
Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic

Large Image :  Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Dingbo
Certification: ISO,CE,SGS
Model Number: DBRG1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: TT/LC
Supply Ability: 10sets/month
Detailed Product Description
Product Name: Professional Full Automatic Aluminium Rainwater Gutter Roll Forming Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Formiong Speed: 10-15m/min Raw Material: Steel Sheet
Roller Material: 45# Steel Blade Material: Cr12 Move
High Light:

cold roll forming machine

,

rain gutter machine



Half Round Steel Rain Water Gutter Cold Roll Forming Machine with Chain Transmission



Main features

Our mission is to provide excellent custom rain gutter machines and tools for professional gutter installation and quality product at competitive prices. The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging. It will make the project more integrate, and help enhancing the image of all project.



Working flow

Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic 0



Technical parameters



Name Rain gutter roll forming machine
Material Type Pre-painted steel sheet, PPGI, GI, PPGL color steel coils
  Thickness 0.4-1.0 mm
  Yield stress 235-345 Mpa
Max.Forming speed 10-15 m/min
Roller material 45# Steel with coated chrome
Shaft material 45# Steel
Roller driven type Chain transmission
Controller Mitsubishi PLC
Operation type Touch screen and button
Hydraulic system pressure 12 MPa
Hydraulic station motor power 3 KW
Main motor power 5.5 KW
Total weight About 6000~8000 Kg
Index error of length 10m±1mm
Voltage 380V/3 phase/50HZ or at buyer's requirement



Machine components



Name Qty
Decoiler 1set
Roll forming machine 1set
Cutting device 1set
PLC control system 1set
Oil pump 1set
Output table 2set



Profile drawing

Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic 1

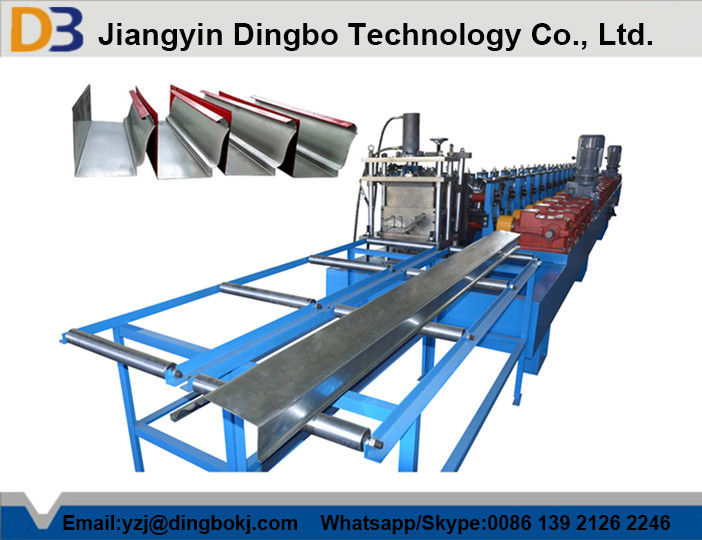

Machine picture

Aluminium Rainwater Gutter Roll Forming Machine Professional Full Automatic 2
