| Raw Material: | Steel Sheet | Shaft Material: | High Grade No.45 Forged |
|---|---|---|---|
| Roller Material: | 45# Forged Steel | Product Name: | Steel Garage Shutter Door Frame Roll Forming Machine Passed CE And ISO |
| Control System: | Panasonic PLC | Drive Way: | Chain Transmission |
| High Light: | roller shutter door roll forming machine,steel door frame roll forming machine |
||

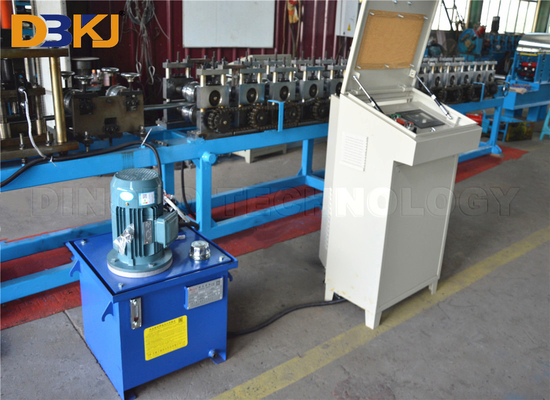

Steel Garage Shutter Door Frame Roll Forming Machine Passed CE and ISO
Main features
Fully automatic shutter door slat roll forming machine is easy to operate to form shutter slats. The shutter slat roll forming machine consists of decoiler, sheet guiding device, roll forming machine, cutting system, supporter, hydraulic system and control system. The product widely used in shops, working departments, warehouses, and fire partition.
Working flow
Uncoiling-----Feeding and punching-----Foll forming-----Hydralic cutting ------Output table
Technical parameters
| Suitable material | Color steel plate, galvanized sheet, aluminum coils and etc. |
| Material of shaft | 45# steel |
| Diameter of shaft | 70mm |
| Productivity | 10-15m/min |
| Rollers station | 13 stations |
| Material of rollers | high grade 45# steel heated and quenched hard chrome coated,0.05mm,hardness HR58-60° |
| Material of blade | Cr12. High-frequency quenching,HR62-64° |
| Cutting type | guide pillar cutting,hydraulic operation cut |
| Control system(PLC) | Taida PLC,touch screen,Automatic control system |
| Voltage | 380v/3Phases/50Hz or as your need |
Machine components
| Components of Machine | Main Description | |
| 1 | Automatic hydraulic uncoiler(according the machine and your requirement) | 1.Loading Capacity: Max: 5 Tons |
| 2.Main motor: 5 KW | ||
| 3.Coil Width: Max: 1250mm | ||
| 2 | Entry Bench | Guiding the raw material into the roll forming machine smoothly |
| 3 | Feeding Section with guide | Easily for the raw material entry |
| 4 | Main forming machine | Forming the panel according your requirement |
| 5 | PLC control system | Automatically control the quantity of sheet, cutting length, step length |
| 6 | Cutting blade | Cutting the panel automatically |
| 7 | Product Rack | Can adjustable according the length of the panel (2 units) |
| 8 | Pressing device | Pressing the panel automatically |
| 9 | Mesh cover above roll former(optional) | Avoid hand go inside the forming machine |
Advanced machinery, well trained workers.
More than 20 years experience in roll forming machine industry.
Unique designed, good Germany quality, competitive China price.
Full process of roll forming machine solution.
Shipment arrangement available.
After-sales services for overseas installation and commissioning
