CE Metal Stud Light Keel Roll Forming Machine With Mitsubishi PLC Control System
Product Features And Descriptions
Light steel keel forming machine in the production of light steel keel (paint) the ceiling is light weight, high strength, waterproof, shockproof, dust proof, sound insulation, sound-absorbing, constant temperature effect and so on, at the same time also has the advantages of short time limit, the construction is simple.
|Main roll forming system|
|Main motor power||15kw|
|Roller material||Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm|
|Roll station||12 groups|
|Raw material||Galvanized steel 2.0-3.0mm thick|
|Working speed||10m--15m/min(Exclude cutting time)|
|Weight of machine||about 6ton|
|Size of machine||About 9500*1000*1500mm L x W x H|
|Color of machine||Up to you|
|Control system||PLC Panasonic, made in Japan. 380V 50HZ, 3 phases|
|Computer operating panel||Touching screen|
|Punching||Hydraulic punching before roll forming|
|Cutting||Hydraulic cutting after roll forming, cutting when reach the set length.|
|Cutting tolerance||+/- 1.5mm|

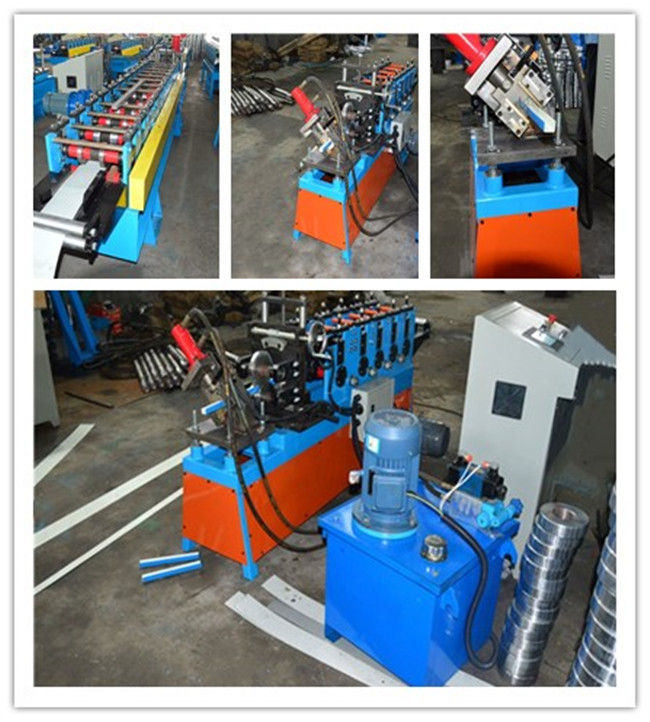

Decoiler,Punching-machine,Main forming machine,PLC control system,Hydraulic pump station,Post cutting,Electric motor,Output table
After sale services
1.Engineer will give free training lessons to labors in buyer’s factory.
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.
3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4.We will charge the buyer cost price of spare parts beyond 2 years and provide long-term technical guide.
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
