Light Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance

China Light Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance supplier
Light Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance supplier Light Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance supplier Light Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance supplier

Large Image :  Light Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: ISO CE SGS
Model Number: DBDW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 12000 USD/set
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets /month
Contact Now
Detailed Product Description
Material: PPGI Raw Material: Steel Coil
Roller Material: 45# Steel Warranty: 2 Years
Voltage: 380V 50Hz Control System: PLC ( Panasonic)
Production Capacity: 10-15m/min


Light Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance

Product Features And Descriptions

Light steel keel forming machine in the production of light steel keel (paint) the ceiling is light weight, high strength, waterproof, shockproof, dust proof, sound insulation, sound-absorbing, constant temperature effect and so on, at the same time also has the advantages of short time limit, the construction is simple.


Working flow

Uncoiler--Feeding--Punching--Leveling--Roll-forming--Hydraulic-cutting--Output table


Product Parameters

Main roll forming system
Main motor power15kw
Roller materialGcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
Roll station12 groups
Raw materialGalvanized steel 2.0-3.0mm thick
Working speed10m--15m/min(Exclude cutting time)
Weight of machineabout 6ton
Size of machineAbout 9500*1000*1500mm L x W x H
Color of machineUp to you
Control systemPLC Panasonic, made in Japan. 380V 50HZ, 3 phases
Computer operating panelTouching screen
PunchingHydraulic punching before roll forming
CuttingHydraulic cutting after roll forming, cutting when reach the set length.
Hydraulic power5.5KW
Blade materialCr12
Working pressure20mpa
Cutting tolerance+/- 1.5mm


Machine components

Decoiler,Punching-machine,Main forming machine,PLC control system,Hydraulic pump station,Post cutting,Electric motor,Output table

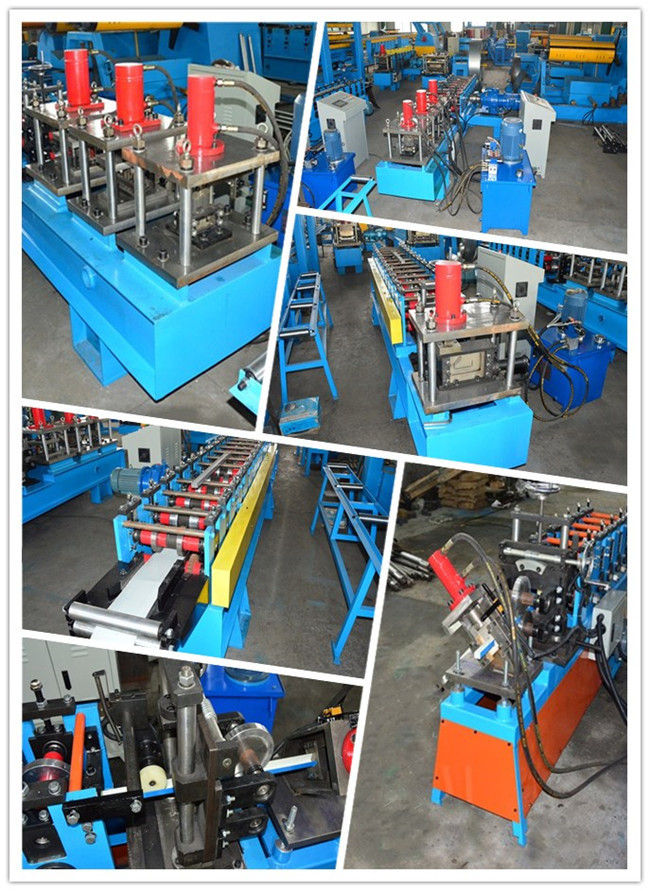

Light Gauge Steel Frame Stud And Track Roll Forming Machine With High PerformanceLight Gauge Steel Frame Stud And Track Roll Forming Machine With High Performance
After sale services

1.Engineer will give free training lessons to labors in buyer’s factory.
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.
3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4.We will charge the buyer cost price of spare parts beyond 2 years and provide long-term technical guide.



FAQ

1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
