Automatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance

Automatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance
Automatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance Automatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance

Large Image :  Automatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: ISO CE SGS
Model Number: DBSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 100000 USD/set
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 10 sets /month
Detailed Product Description
Raw Material: Steel Coil Roller Material: 45# Steel
Warranty: 2 Years Control System: PLC ( Panasonic)
Production Capacity: 0-60m/min Accuracy: ±0.05
Product Name: PLC Control Leveling Steel Coil Cut To Length Machine Line With Hydraulic Decoiler After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

cut to length machine


steel slitting machine



Automatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance



Brief descriptions

Cut-To-Length Lines are purposed for Uncoiling, Leveling and Straighting as well as Cross Cutting metal strip to produce sheets for proper Stacking; every these functions are accomplished by our machines which are designed to cope with an impressive variety of material features ranging from the thinner softer aluminum to the thicker – tougher stainless and high strength carbon steel.



Working flow

Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking tableAutomatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance 0





1.Brand Name: Dingbo
2.Model: DBCTL-3x1300
3.Condition: New
4.Certification: ISO,SGS,CE
5.Thickness (mm): 0.4-3
6.Coil width(mm): 400-1300
7.Producing Speed(m/min) 0-60
8.Weight(t): 10,15
9.Length of tolerance(mm)



Main components


1. Hydraulic coil Car 1 unit
2. Hydraulic de-coiler 1 unit
3. Looper 1 1 unit
4 Side guide device 1 1 unit
5. 4-High pre-leveling machine 1 unit
6. Looper 2 1 unit
7. Side guide device 2 1 unit
8. Servo precise straightening machine 1 unit
9. High speed shearing machine 1 unit
10. Transportation table 1 unit
11. Hydraulic lifting table 1 unit
12. Pneumatic stacker device 1 unit
13. Exit coil car 1 unit
14. Pneumatic system 1 set
15. Electrical control system 1 set
16. Hydraulic Control System 1 set

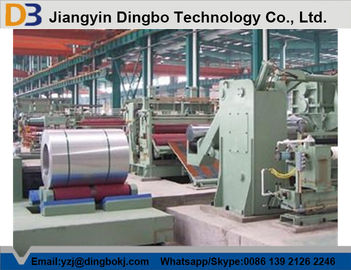

Machine picture

Automatic Control Ctl Machine , Ctl Line DBCTL -3x1300 High Performance 1


Use and attention

1. Coil should be put right to keep the weight balanced. The coil car can reset only after fix and expand the coil into decoiler tightly.

2. First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.

3. Operators shall not stand on the coil when machine running.

4. Do not move coil directly by hand.

5. Stop and check the machine units immediately when find fault. Only check out and correct, the machine can restart.

6. Do not remove or change circuit. In case has problem, please consult professional technicians.



Our services


1.Advanced machinery, well trained workers.

2.More than 20 years experience in roll forming machine industry.

 3.Unique designed, good Germany quality, competitive China price.

 4.Full process of roll forming machine solution.


 5.Shipment arrangement avaiable.


 6.After-sales services for overseas installation and commissioning.


 1. Does one machine can only produce one size?

Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine           overseas  to customers’ workshop if needed.


3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need    machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.


6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.


8.What's the warranty period?

12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
