Mitsubishi PLC Control Cable Tray Roll Forming Machine With European Standard

small.img.alt small.img.alt

Large Image :  Mitsubishi PLC Control Cable Tray Roll Forming Machine With European Standard

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: ISO CE SGS
Model Number: DBCT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD30,000-100,000
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T
Supply Ability: 20 sets /month
Detailed Product Description
Raw Material: Color Steel Roller Material: 45# Steel
Production Capacity: 10-15m/min Power(W): 78 KW
Voltage: 380V 50Hz Control System: PLC ( Panasonic)
Cutting Blade Material: Cr 12 High Grade Steel Product Name: Professional Cable Tray Ladder Roll Forming Machine With Feeding And Pre-Punching System
High Light:

cable tray making machine


cable tray manufacturing machine


Mitsubishi PLC Control Roll Forming Equipment With European Standard For Cable Tray


Main feature

Cable tray roll forming machine has three kind according to product shapes. It is widely used in communications, chemical industries ect. We have more than 20 years experience in manufacturing roll forming machines in China.we can customize the design products according to the customer's requirements.


Working flow

Decoiler------guiding------leveling---punching-------roll forming--------cut to length-----output table


Main parameters

  • Condition: New
  • Type: Cable tray roll forming machine
  • Tile Type: Steel
  • Use: Step support
  • Production Capacity: 10 m / min
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Wuxi Shenghong
  • Power(W): 15 KW
  • Voltage: 380v, 3phase, 50Hz or at buyer`s requirement
  • Dimension(L*W*H): Length: 8000 * Width1000 * Height:1400mm
  • Weight: around 8000 kgs
  • Certification: CE, ISO9001:2008
  • Warranty: 1year
  • Punching type: optional
  • Roller stands: aound 16stands
  • Passive uncoiler: 3T
  • Controller: PLC
  • Roller driven type: Chain transmission
  • Thickness: 1.5-3.0mm
  • Main motor power: 15kw
  • Hydraulic station power: 5.5kw


Machine components

S.N Equipment name Quantity
1 5T hydraulic un-coiler 1 set
2 Coil Levelling device 1 set
3 Hydraulic Punching 1 set
4 Hydraulic Pre-cutting 1 set
5 Main roll forming machine 1 set
6 Hydraulic station 1 set
7 Control system ( including control box) 1 set
8 Out tables 2 units
9 Spare parts 1 package

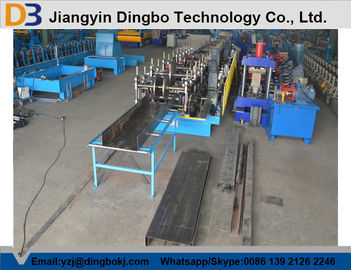

Machine picture

Mitsubishi PLC Control Cable Tray Roll Forming Machine With European Standard 0



Our services


Advanced machinery, well trained workers.

More than 20 years experience in roll forming machine industry.

Unique designed, good Germany quality, competitive China price.

Full process of roll forming machine solution.


Shipment arrangement available.


After-sales services for overseas installation and commissioning





1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.


6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
