Payment & Shipping Terms:
|Raw Material:||Color Steel||Roller Material:||45# Steel|
|Production Capacity:||10-15m/min||Power(W):||22 KW|

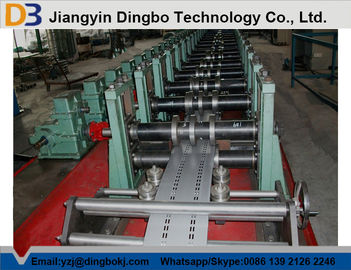

|Cutting Blade Material:||Cr 12 High Grade Steel||Product Name:||80 Mm Shaft Rack Shelf Cold Roll Forming Machine With Cr 12 Quenched Cutter|
|Shaft Material:||High Grade No.45 Forged||Control System:||PLC(imported Brand)|
storage rack roll forming machine,
racking roll forming machine
This shelf rack roll forming machine is consisted with auto-de-coiler, guide frame, lever/feeding section, continuous bottom hole punching section, forming section, positioning and cutting section, collection table and electrical control system etc.
|Rack Shelf Roll Forming Machine||Number of stations||16 stations|
|Shaft material||Using high-quality steel 45 quenched and tempered after finishing treatment|
|Power of hydraulic station||5.5kw|
|Roller material||High quality 45 Forged chrome-plated hardware|
|Power of main motor||11.0kw|
|Hydraulic station pressure||10～12 Mpa|
|Cutter material||Cr12 quenched|
|Weight of high speed punching machine||68 tons|
|Electronic controlling system||Full-frequency PLC controlling system, error of cutting length ≤ 2mm
|Product Name||Main composition|
|Rack Shelf Frame Roll Forming Machine||Servo feeding system|
|3 tons manually decoiler|
|High speed punching machine|
|Chain driven transmission|
|Main frame (including guiding platform)|
|Electric controlling system|
1. Simple structure,good appearance since the whole machine is used profiled steel structure and wholly manufacturing after welding, in order to make it running stable and reliable.
2. Completely automatic cutting, accurate length and position, trim cutting for rear of profile sheets, no deformation.
3. Easy installation, good performance for manufacturing in factory.
4. Low noise, high efficiency.
Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing, technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.
The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z Purlin forming machine, Guardrail forming machine, Racking roll forming machine, cable tray roll forming machine, Glazed Tile forming machine, DownPipe forming machine, Roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.
The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
