10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine

10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine
10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine 10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine

Large Image :  10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Dingbo
Certification: ISO,CE,SGS
Model Number: DBCT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD10,000-20,000
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: TT/LC
Supply Ability: 10sets/month
Detailed Product Description
Raw Material: Color Steel Sheet Shaft Material: High Grade No.45 Forged
Roller Material: 45# Forged Steel Roller Driven Type: Chain Transmission
Control System: PLC(imported Brand) Product Name: Corrugated Roofing Sheet Roll Forming Machine
High Light:

roofing sheet roll forming machine

,

corrugated sheet roll forming machine

10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine



Main features

The corrugated tile produced by this corrugated roll forming machine Line is one of market hot sale products. Its feature is low cost, convenient for mounting, therefore extensively applied in light steel frame factory buildings ,warehouses, public buildings, etc. The metal roof panels have become the popular roofing panels.



Working flow

Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack



Technical parameters

(1) Suitable material: color steel
(2) Thickness of the plate: 0.3-0.8mm
(3) Input width of the plate: 1250/1000mm
(4) Width of the plate after forming: 1000/800mm
(5) Productivity: 10-15m/min
(6) Roller steps: 18rows
(7) Roller material: 45# steel Rolling chromium thickness:0.05 mm
(8) Diameter of active shaft: 80mm
(9) Wall thickness of the main forming machine:16mm steel plate
(10) Main forming machine body: 300mmH steel
(11) Transmission chain is1"
Reducer is 5.5kw which works stably and no noise
(12) Cutting hydraulic system adopts CDF-10 gear pump,the motor power is 4kw, no noise, work stably.
(13) PLC control system, easy to operate, high precision and work stably.
(14) Dimensions of major structure: 8500mm*1600mm*1200mm



Machine components



No Name Quantity
1 5 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out tables 2 units

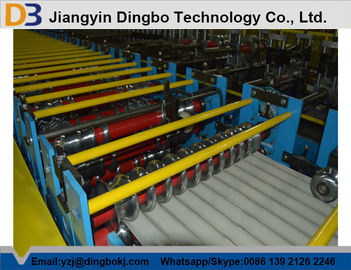

Product pics

10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine 0

Profile dwrawing

10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine 1

Packaging

The control box, hydraulic station and other spare parts are packed with plywood box.

Equipment fix with container use steel wire. Protect the machine didn't broken in the delivery.

Wall Cladding Making Machine



Our Certifications


High Frequency Carbon Steel Tube Mill Line





FAQ


1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.



6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.


9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
