10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise

large.img.alt
large.img.alt
video play

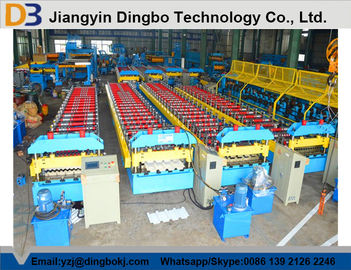

Large Image :  10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: DB
Certification: CE.SGS.ISO9001
Model Number: YX30-200-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: US $15,000 - 40,000 / Set
Packaging Details: Nude Package in 40 GP Container
Delivery Time: 3o to 50 Days After Receiving the Deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 Set/Sets per Month
Detailed Product Description
Color: Optinal Warranty: 1 Year
Control System: PLC With Touch Screen Roller Material: 45# Steel
Type: Roll Forming Machine
High Light:

roll former machine

,

roof tile roll forming machine

Full Automatic High Speed Guard Pin Gear Box Foof Tile Roll Forming Machine



Profile Drawing







10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise 0



Working Flow





10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise 1



A.Main Data



1)Main motor power: 5.5kw
2)Drive: gear box
3)Main shaft dia: 76mm material: 45 forge steel and quenched
4)Roller material: 45# forge steel ,chrome coated 0.05mm
5)Roll station: 20 steps
6)Type of forming machine: roof panel
7)Raw material: GI steel 0.3-0.8mm
8)Width of feeding material: 1250mm
9)Working speed: 10-15m/min(Exclude cutting time)
10)Length Tolerance: ±1.5mm
11)Weight of machine: about 5ton
12)Size of machine: About 7500×1800×1500mm L x W x H
13)cof machine: yellow and blue
14)Coder: Omron, made in Japan
15)Control: PLC Panasonic, made in Japan. 380V 50HZ(Also depend on customer requirement)
16)Computer operating panel: touching screen
17)Cutting: Hydraulic cutting
18)Auto cutting when reach the set length. Hydraulic power: 3KW
19)Blade material: Cr12,quenched 55°-58°
20)Working pressure:16mpa







B. Manual Decoiler
1)Capacity: 5ton
2)Feeding width: MAX 1250mm
3)Expanding range: 480-520mm







C. Passive Output Table
1) Valid length: MAX 4m
2) Capacity: 3ton
3) Max loading height: 100mm
4) Transport: by roller passively







Character of Main Structure:



a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency.







Photos for Refer:

10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise 2



10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise 3



10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise 4
