C Purlins Roll Forming Machinery with Well Ccompressive Strength

Introduction:
The C purline formed by this C purline forming machine has many advantages: well compressive strength and flatness; automatic measureing, cutting and punching; high-level of automation and conviently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, the warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
This machine is composed of manual stacker, the pesestal of the staker, feed leading table, flattening device, hydraulic station, computer control box.

Main parameter:
1. Install size:13500mm*2200mm*1500mm
2. Rollers: 13-15 rows
3. Rolling material: Gcr 15
4. Main motor power:11 KW
5. Hydraulic unit power: 11 KW
6. Pressure of the hydraulic unit: 18-20Mpa
7. Productivity: 9-10 m/min
8. Punching material: Cr12
9. Electric control system: PLC vector inverter
10. Raw material thickness: 1.5-3.0mm
11. Forming standard: 80-300
12./ shaped rib (optional)

Usage:shape purlin

Model

Section size

h(mm)

b(mm)

c(mm)

t(mm)

C Purlins Roll Forming Machinery with Well Ccompressive Strength 0

C80

80

40

15

2.0-2.5

C100

100

40

20

2.0-3.0

C120

120

50

20

2.0-3.0

C140

140

50

20

2.0-3.0

C160

160

70

20

2.0-3.0

C180

180

60

20

2.0-3.0

C220

220

80

20

2.0-3.0

C240

240

70

20

2.0-3.0

C250

250

80

20

2.0-3.0

C260

260

80

20

2.0-3.0

C280

280

100

20

2.0-3.0

C300

300

100

20

2.0-3.0






Working flow:
C Purlins Roll Forming Machinery with Well Ccompressive Strength 1
Advantage:

1. We use Automatic control software to manage productive information.

2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.

3. High performance in operation, maintenance, and debugging. Easy to load and unload.

4. First in quality

5. First in time

6. First in price

7. First in services

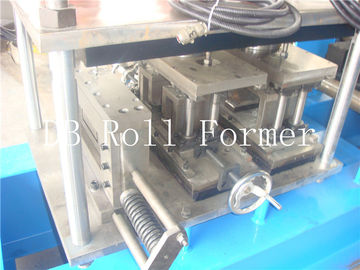

Photo of main roll forming machine:

C Purlins Roll Forming Machinery with Well Ccompressive Strength 2
