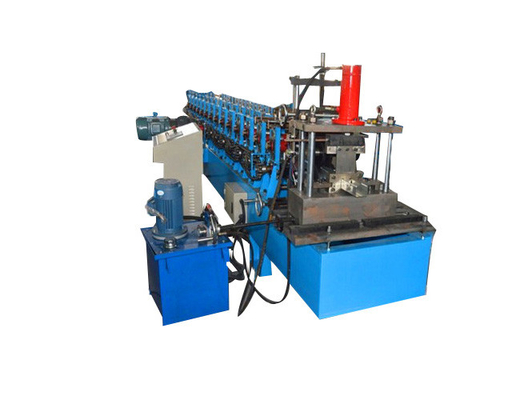

Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System

Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System
Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System

Large Image :  Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: CE SGS ISO
Model Number: DBCZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000~40000 USD/set
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets /month
Detailed Product Description
Control System: PLC With Touch Screen Roller Material: 45#steel Chrome Plated
Raw Material: Galvanized Sheet Power(w): 18.5kw
Shaft Material: High Grade 45# Steel Cutting Blade Material: Cr 12 High Grade Steel
Step Of Rollers: 16 Production Capacity: 10-15m/min
High Light:

z purlin roll forming machine

,

c purlin roll forming machine



Automatic change CZ purlin roll forming machine



Product Descriptions

The purlins are now commonly used in the construction industry, with different shapes and sizes, the most commonly used are C purlin and Z purlin. Dingbo's purlin forming machine can produce both C and Z products on the same machine. It only takes 40 minutes to change between C and Z. In addition, the purlin machine can produce sizes between 100 and 300, easy to adjust, in just ten minutes.

What's important is that our purlins can be designed with a punching device and a punched hole in the punch that can be tightened during installation.

The operation is simple, the PLC control works automatically, and the machine ensures high-precision operation with a tolerance of ±1mm.

Version to design

Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System 0



Product Parameters

  • Raw material type: Steel coil/Galvanized coil(optional)
  • Thickness: 1.5-3.0mm
  • Roller material: GCr15/Cr12
  • Shaft material:High Grade No.45 Forged
  • Machine Frame Stand: Welded structural steel
  • Forming Stations: 16stations
  • Control type: PLC(customer's requirement)
  • Driven type: Chain drive
  • Main power: 18.5kw
  • Cutting Blade Material: Cr12 Mov

Main Components



No. Name Qty
1 Hydraulic decoiler 1
2 Guiding device 1
3 Main roll forming machine 1
4 PLC Control box 1
5 Hydraulic station 1
6 Run out table 2


Machine pic

Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System 1

Application

Automatic Change CZ Purlin Roll Forming Machine With Chains Transmission System 2

Our service



Designing:

After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.



Making:

The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.



Assembling:

The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.



Testing:

Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.



Delivery:

Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.





Main features



1. We can make and design all kinds of roll forming machine according to customer's requests.


2. This is a very perfect and durable equipment. We have more than 20 years experiences.


3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.


4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.


5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
