Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles

China Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles supplier
Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles supplier Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles supplier Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles supplier

Large Image :  Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: ISO CE SGS
Model Number: DBCT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 40000 USD/set
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets /month
Contact Now
Detailed Product Description
Product Name: Cable Tray Cable Ladder Roll Forming Machine Roller Material: Gcr15
Shaft Material: 45# Steel Main Motor Power: 22KW
Punching Press: 200Tons Line Speed: 4-6m/min
Forming Speed: 10-15m/min Roller Stations: 18 Stations



Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles



Main feature



Steel cable tray rol forming production line can produce cable trays, perforated cable trays and cabble ladders with 0.6-1.2mm galvanized steel coils. Formed cable tray widths range from 100mm to 300mm and heights range from 50mm to 100mm as requested. Automatic width adjust means that users only need to input the data of the width desired on touch screen, which is more convenient than manual adjust and can save a lot of time for users.



Working flow



Uncoiling---Leveling---Storage---Feeding---Punching---Cutting---Roll forming---Output table



Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles


Technical parameters



1, Diameter: 420-560mm hydraulic expansion.

2, Main power: 5.5kw

3, Servo feeding motor: About 4.4KW

4, Press machine: 200tons

5, Punching mould material: Cr12mov

6, Material thickness: 1.0-2.5mm

7, Raw material: Galvanized steel

8, Forming speed: 10-15meters / min

9, Line speed: 4-6m/min

10, Forming stations: 18 stations

11, Material of roller: Gcr15, Quench HRC58-62 Plated Chrome

12, Material of shaft: 45# Steel

13, Shafts diameter: 76mm

14, Driven system: Chain driven

15, Main power: 22kw

16, Cutting power: 5.5kw

17, Material of blade: Cr12Mov, Quench HRC58-62

18, Tolerance of length: +-1.5mm

19, Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requirement)

20, Control panel: Button touch screen



Main components



Components of Cable Tray Roll Forming Machine Quantity
Hydraulic Uncoiler 1 Unit
7 Rollers Leveling 1 Unit
Servo Feeding 1 Unit
Punching Press 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting 1 Unit
PLC Electrical Control Board 1 Unit
Hydraulic Stations 1 Unit
Run Out Table 1 Unit


Profile drawing



Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles

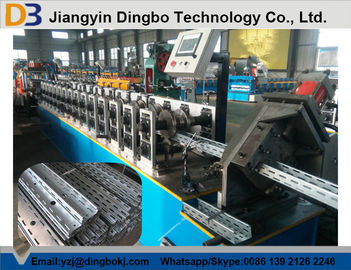

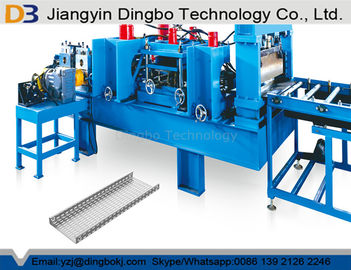

Machine pic



Automatic Adjustment Size Cable Tray Roll Forming Machine For 100 - 800mm Width Profiles



Installation and training


If buyers visit our factory and check the machine, we will teach how to install and use the machine and also train your workers / technican face to face. Without visiting, we will send you manual and video to teach you install and operate.


If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.




Our service



  Advanced machinery, well trained workers.

  More than 20 years experience in roll forming machine industry.

  Unique designed, good Germany quality, competitive China price.

  Full process of roll forming machine solution.



  Shipment arrangement available.



  After-sales services for overseas installation and commissioning.



Our Advantages



> Can roll form ventilated cable trays cabble ladder cable trays from 100mm to 300mm width in one machine

> Automatic adjust the gap between the rollers for each dimension

> High precision punching holes and slots by 80 Tons high speed and high precision power press

> Low burr cutting and exact accuracy of cutting length

> All electric and hydraulic elements are selected from international famous brand









Contact Details
Jiangyin Dingbo Technology CO., Ltd.

Contact Person: Andy Yang

Send your inquiry directly to us (0 / 3000)
