High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12

High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12
High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12 High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12 High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12

Large Image :  High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Dingbo
Certification: ISO CE SGS
Model Number: DBDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 30000 USD/set
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets /month
Detailed Product Description
Material: PPGI Raw Material: Steel Coil
Roller Material: 45# Steel Power(W): 5.5+4KW
Warranty: 2 Years Use: Floor
Voltage: 380V 50Hz Control System: PLC ( Panasonic)
Thickness: 0.3-1.2mm Production Capacity: 8-15m/min
High Light:

floor deck roll forming machine

,

roofing sheet forming machine



High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12



Product Features And Descriptions



Products of Metal deck roll forming machine the surface embossing of pressure plate makes the maximum binding force between the floor slab and concrete, so that the two can form a whole, with stiffening rib, so that the floor system has high bearing capacity.

The length of the suspension can be determined according to the section characteristics of the slab.

In order to avoid the cracking of the overhanging plate, it is necessary to attach the negative reinforcement to the design of the structural engineer at the support base.





Working flow



Decoiler--Guiding&leveling--roll forming-- cutting to length--Run out





Product Parameters





No. Main parameter of Floor Deck Roll Forming Machine
1 Suitable to process GI
2 Width of the plate 1500mm
3 Roller stations 22 stations
4 Dimensions 12700*1.85*1.61m
5 Power 33+11.5kw
6 Rolling material shaft bearing steel(quenching)
6 Thickness of the plate 1.5mm
7 Productivity 15m/min
8 Diameter of the roller 100mm
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Processing precision Within 1.00mm
12 Control system PLC control







Machine components



NO. Name Qty
1 Uncoiler deck 1 set
2 Forming machine 1 set
3 Cutting device 1 set
4 Hydraulic station 1 set
5 PLC control system 1 set
6 Run out table 1 set

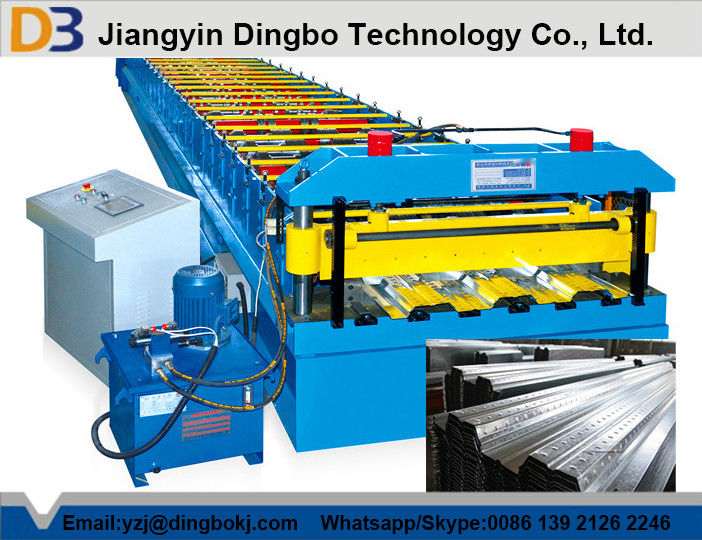

Machine picture



High Efficiency Floor Deck Roll Forming Machine Durable Punching Metal Cr12 0





Installation of the plant



One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100/per day and visa fee, air tickets fee, accommodation and food, necessary communication and insurance, etc.





FAQ



Q: Does one machine can only produce one size?
A:Not exactly, it depends on which profile the customer want to produce.


Q:Do you have after-sales technical support?
A:Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

Q: You are trading company or factory?
A:We are Manufacturer, and we export our machine by ourselves.

Q:How long the machine could be made?
A:Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

Q: Do you provide customized?
A:Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.



Q: May we visit your factory?
A:Sure,Warmly welcome to our factory at any time.

Q:How to visit your factory?
A:By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

Q:What's the warranty period?
A:12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.


Q:Can we arrange shipment?

A:Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
