Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed

Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed
Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed

Large Image :  Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Dingbo
Certification: ISO,CE,SGS
Model Number: DBRG1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10,000-20,000
Packaging Details: Export standard sea package with film and steel
Delivery Time: Shipped in 30-70 days after payment
Payment Terms: TT/LC
Supply Ability: 10sets/month
Detailed Product Description
Shaft Material: High Grade No.45 Forged Roller Material: 45# Forged Steel
Control System: PLC(imported Brand) Color: Customers Requirement
Warranty: 24 Months Product Name: Unique Designed And Good Germany Quality Steel Rain Gutter Roll Forming Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas Use: Gutter
High Light:

cold roll forming machine

,

rain gutter machine



Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed



Main features

Steel gutter roll forming machine is used for the production of the metal gutters, which are widely used in the modern villas and multiple raises buildings.

gutter machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished.



Working flow

Decoiling → guided material feeding → roll forming → cut-to-length → run out



Technical parameters

No. Main parameter of Popular 5' Steel Rain Gutter Roll Forming Machine with Best Price
1 Suitable to process Color steel plate
2 Width of the plate 330 mm
3 Rollers 16 rows
4 Dimensions 7100*1350*1519mm
5 Power 3+3kw
6 Rolling material 45# steel(plated chrome on surface)
6 Thickness of the plate 0.3-0.8mm
7 Productivity 10-15m/min
8 Diameter of the roller Φ66 mm
9 Voltage 380V 50Hz 3pha ses
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control





Machine components

1. 5T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. Run out table

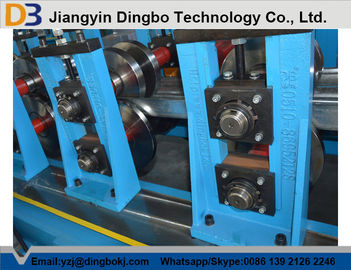

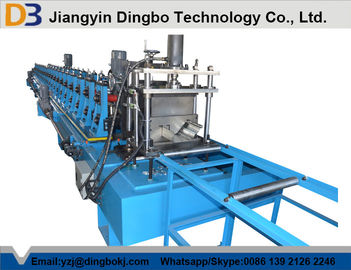

Machine picture

Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed 0


Product picture
Steel Rain Gutter Roll Forming Machine , Gutter Making Machine Unique Designed 1



FAQ


1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.



6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.


9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
